Product Overview

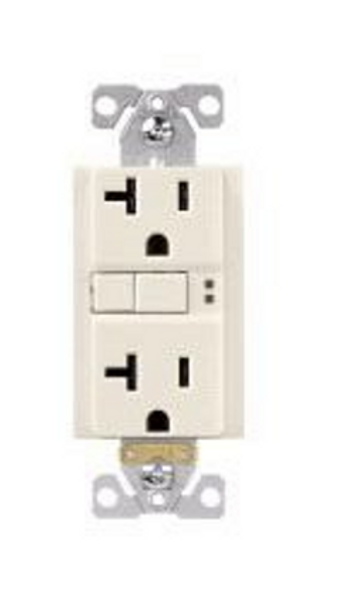

Protect people and equipment with the Eaton TRSGF20LA 20A/125V GFCI duplex receptacle. This tamper‑resistant (TR) GFCI features continuous self‑testing per the latest UL standards, helping ensure ground‑fault protection is functioning. The NEMA 5‑20R face accepts both 15A and 20A plugs (T‑slot), and back‑and‑side‑wire terminals simplify installation with #14–#10 AWG conductors. Its durable polycarbonate body and clean Light Almond finish suit residential and commercial interiors where code‑compliant GFCI protection is required.
- 20A, 125V GFCI duplex, tamper‑resistant shutter design
- Self‑test GFCI for ongoing protection monitoring
- NEMA 5‑20R T‑slot accepts 15A and 20A plugs
- Back & side wire terminals for #14–#10 AWG
- Light Almond color for a modern, neutral look
Key Features
- Tamper‑Resistant (TR): Internal shutters help prevent insertions by children
- Self‑Test GFCI: Automatically monitors ground‑fault protection
- NEMA 5‑20R: 20A receptacle accepts 5‑15P and 5‑20P plugs
- Back & Side Wire: Flexible terminations for solid or stranded copper conductors
- Flush Mount: Clean, low‑profile appearance for residential/commercial use
Specifications
- Brand: Eaton
- Model: TRSGF20LA‑BX‑LW
- Type: GFCI duplex receptacle, tamper‑resistant, self‑test
- Rating: 20A, 125V AC
- NEMA: 5‑20R (two‑pole, three‑wire, grounding)
- Wiring Terminations: Back and side wire, #14–#10 AWG copper
- Material: Polycarbonate body/face; brass contacts (per series)
- Color/Finish: Light Almond
- Listings: UL Listed; CSA Certified (per series)
- Environment: Indoor/dry locations (use WR/TR for outdoor)
- Mounting: Flush, standard wallbox
- Package: Boxed
What’s Included
- Eaton TRSGF20LA 20A/125V TR Self‑Test GFCI Receptacle (Light Almond)
- Mounting screws and instruction sheet
